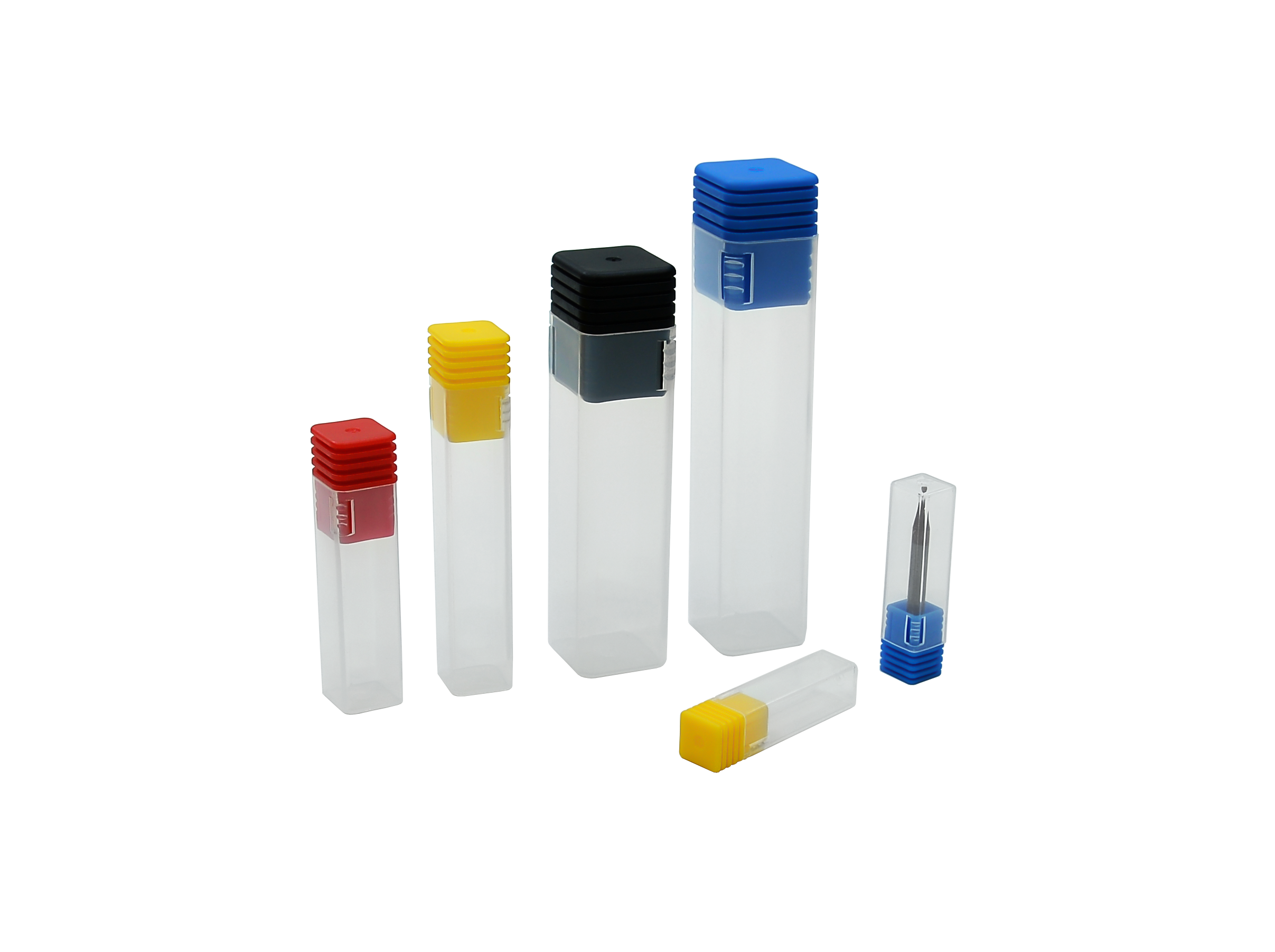

Milling Cutter Case

Name: Milling Cutter Case
Brand: PANDE Tools Plastic Package
Availability: InStock
Rating: 5 (1 reviews)

Specially designed for solid carbide milling cutters and drills.
Improved bottom makes the installation much easier.
Inner arris in the bottom make tools well fixed.
Grooves in the bottom make the pack open easily.
Ratchets in the cover avoid opening mistakenly.

Base Color:

Black

Blue

Red

Orange

Yellow

Green

White

Transparent

Lid Color:

Transparent

Non-stock color:

Customizable

GET A QUOTE

Description

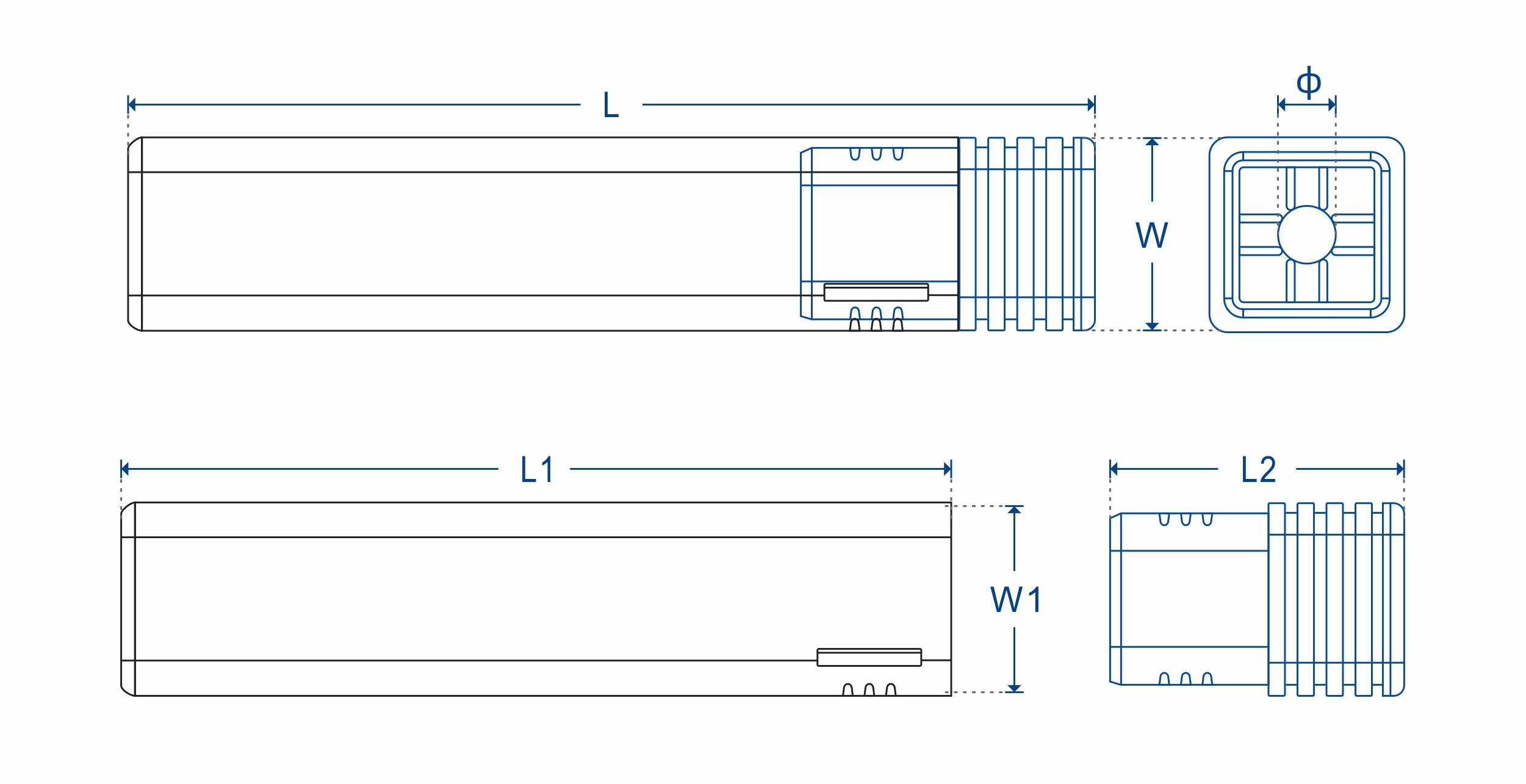

Schematic Diagram

Product Specifications

Note：ALL Dimensions in MM

Article	Base Inner Diameter (ϕ)	Lid L (L1)	Lid ID (W1)	Base L (L2)	*Lid + Base OD (W L)**	Qty / Bag
45L	2.3 / 3 / 3.175 / 4 / 4.75 / 5 / 6 / 6.35 / 7 / 8	44	10.7	19.5	131354	1500 pcs
62L	2.3 / 3 / 3.175 / 4 / 4.75 / 5 / 6 / 6.35 / 7 / 8	54	10.7	19.5	131364	1500 pcs
65L	2.3 / 3 / 3.175 / 4 / 4.75 / 5 / 6 / 6.35 / 7 / 8	60	10.7	19.5	131370	1500 pcs
82L	2.3 / 3 / 3.175 / 4 / 4.75 / 5 / 6 / 6.35 / 7 / 8	71	10.7	19.5	131380	1500 pcs
85L	2.3 / 3 / 3.175 / 4 / 4.75 / 5 / 6 / 6.35 / 7 / 8	75	10.7	19.5	131385	1500 pcs
100L	2.3 / 3 / 3.175 / 4 / 4.75 / 5 / 6 / 6.35 / 7 / 8	95	10.7	19.5	1313104.5	1500 pcs
102L	2.3 / 3 / 3.175 / 4 / 4.75 / 5 / 6 / 6.35 / 7 / 8	99	10.7	19.5	1313109	1500 pcs
60L	6 / 6.35 / 8 / 9.5 / 10 / 12 / 12.7	60	14.7	26	171772.5	900 pcs
90L	6 / 6.35 / 8 / 9.5 / 10 / 12 / 12.7	75	14.7	26	171787.5	900 pcs
95L	6 / 6.35 / 8 / 9.5 / 10 / 12 / 12.7	82	14.7	26	171794	900 pcs
115L	6 / 6.35 / 8 / 9.5 / 10 / 12 / 12.7	104	14.7	26	1717116	900 pcs
72L	6 / 6.35 / 8 / 9 / 10 / 12 / 12.7 / 13	60	16	27.6	181870	750 pcs
92L	6 / 6.35 / 8 / 9 / 10 / 12 / 12.7 / 13	76	16	27.6	181889	750 pcs
112L	6 / 6.35 / 8 / 9 / 10 / 12 / 12.7 / 13	100	16	27.6	1818114	750 pcs
152L	6 / 6.35 / 8 / 9 / 10 / 12 / 12.7 / 13	145	16	27.6	1818157	500 pcs
80L	14 / 16 / 18 / 20	75	24.4	33	262690	300 pcs
80L	D14 / D16 / D18 / D20 (Ext.)	75	24.4	43	262695	300 pcs
105L	14 / 16 / 18 / 20	92	24.4	33	2626109.5	300 pcs
105L	D14 / D16 / D18 / D20 (Ext.)	92	24.4	43	2626114.5	300 pcs
125L	14 / 16 / 18 / 20	113	24.4	33	2626129	300 pcs
125L	D14 / D16 / D18 / D20 (Ext.)	113	24.4	43	2626134	300 pcs
150L	14 / 16 / 18 / 20	140	24.4	33	2626157	300 pcs
150L	D14 / D16 / D18 / D20 (Ext.)	140	24.4	43	2626162	300 pcs
200L	14 / 16 / 18 / 20	188	24.4	33	2626201	200 pcs
200L	D14 / D16 / D18 / D20 (Ext.)	188	24.4	43	2626206	200 pcs
108L	18 / 20	90	25	44	2828111.5	300 pcs

Dongguan Xindi Mechanical Tool Co.,Ltd.is a design, production,sales in one of the diversified production enterprises. The mainproducts are milling cutter box, telescopic box, tool handle box,knife handle box, carbide insert box, screw tap box and otherplastic packaging box for CNC cutting tools.
