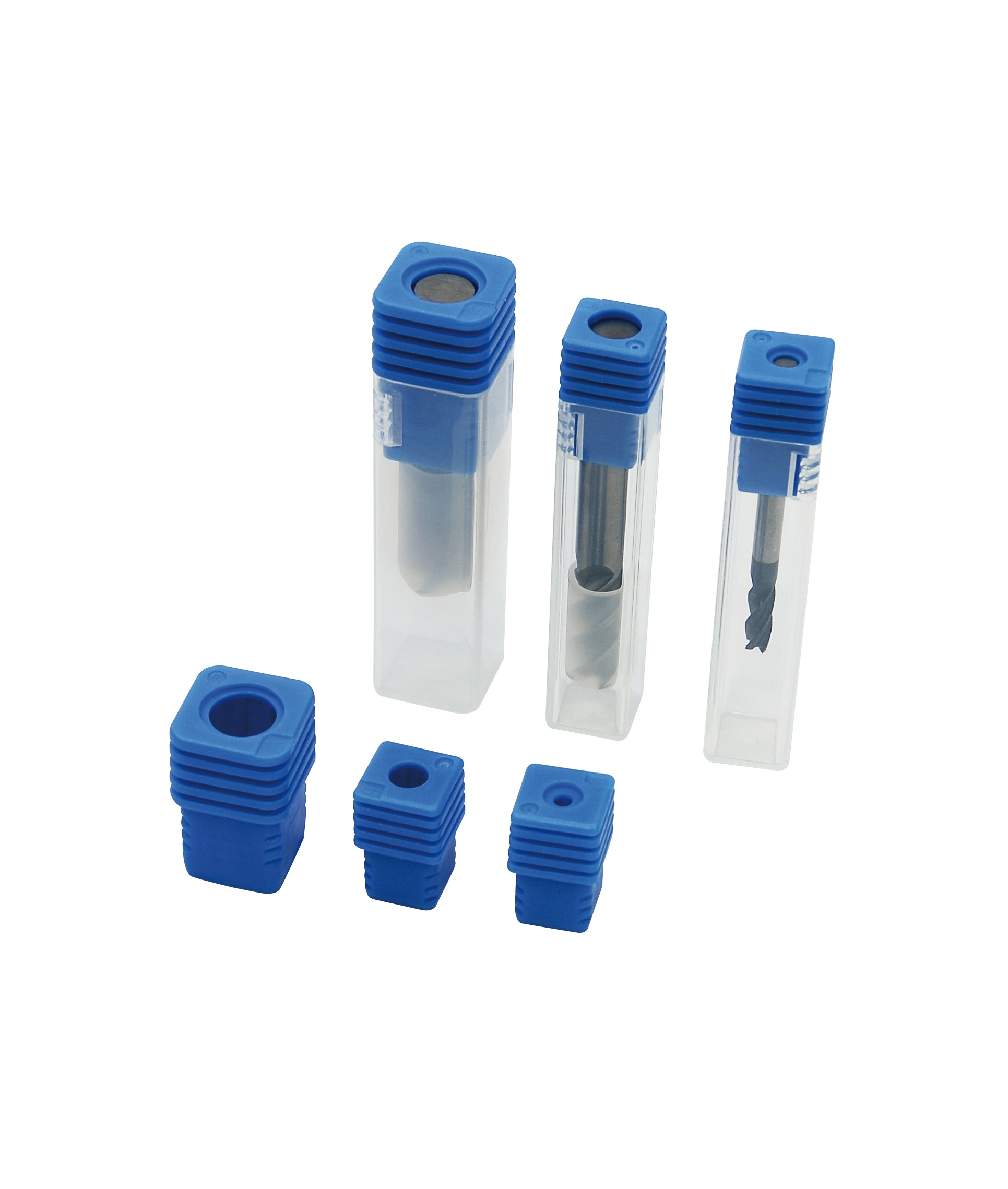

Cutter Box With Cut-out Scan

  • Specially designed for solid carbide milling cutters and drills.
  • Hollow structure in the center of base.
  • Shank with QR code can be directly scanned to read tool information.
$0.00
Color:
Blue
Yellow
Transparent
Non-stock color:
Customizable
  • Cutter Box With Cut-out Scan

Description

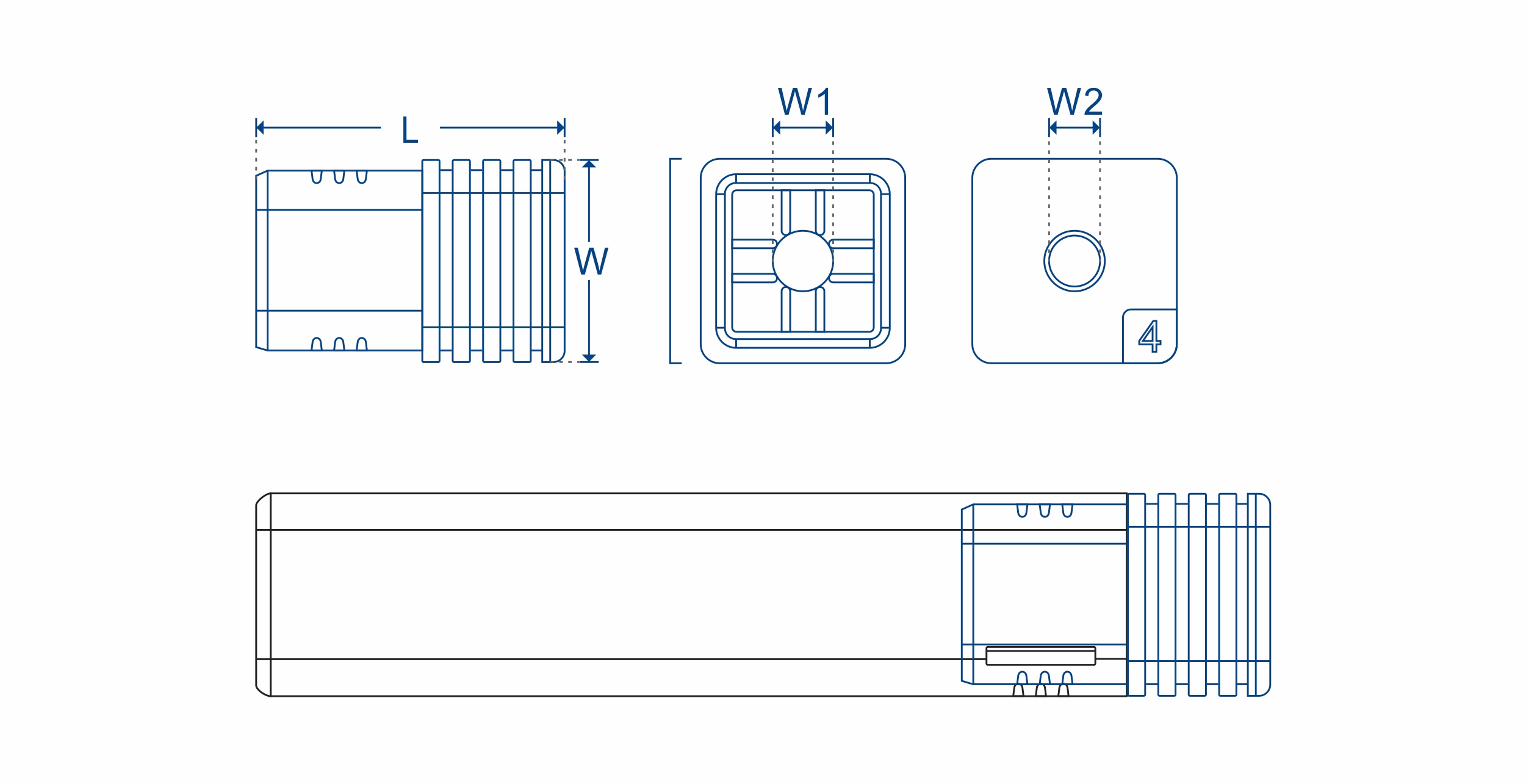

Schematic Diagram

Product Specifications

Note:ALL Dimensions in MM
Note: Click the link for dimensions of Milling cutter Lid.

Article Matching Lid Spec Base OD (W) Base ID (W1) Hollow ID (W2) Base L (L)
Qty / Bag
K3 45L / 62L / 65L / 82L / 85L / 100L / 102L 13 3 2.5 19.5 1500 pcs
K4 45L / 62L / 65L / 82L / 85L / 100L / 102L 13 4 3.5 19.5 1500 pcs
K6 45L / 62L / 65L / 82L / 85L / 100L / 102L 13 6 5.5 19.5 1500 pcs
K8 45L / 62L / 65L / 82L / 85L / 100L / 102L 13 8 7.5 19.5 1500 pcs
K10 60L / 90L / 95L / 115L 17 10 9.5 21.1 1800 pcs
K12 60L / 90L / 95L / 115L 17 12 11.5 21.1 1800 pcs
K14 80L / 105L / 125L / 150L 26 14 11.8 43.5 900 pcs
K16 80L / 105L / 125L / 150L 26 16 11.8 43.5 900 pcs
K18 80L / 105L / 125L / 150L 26 18 11.8 43.5 900 pcs
K20 80L / 105L / 125L / 150L 26 20 11.8 43.5 900 pcs
